Description

Basic Functions

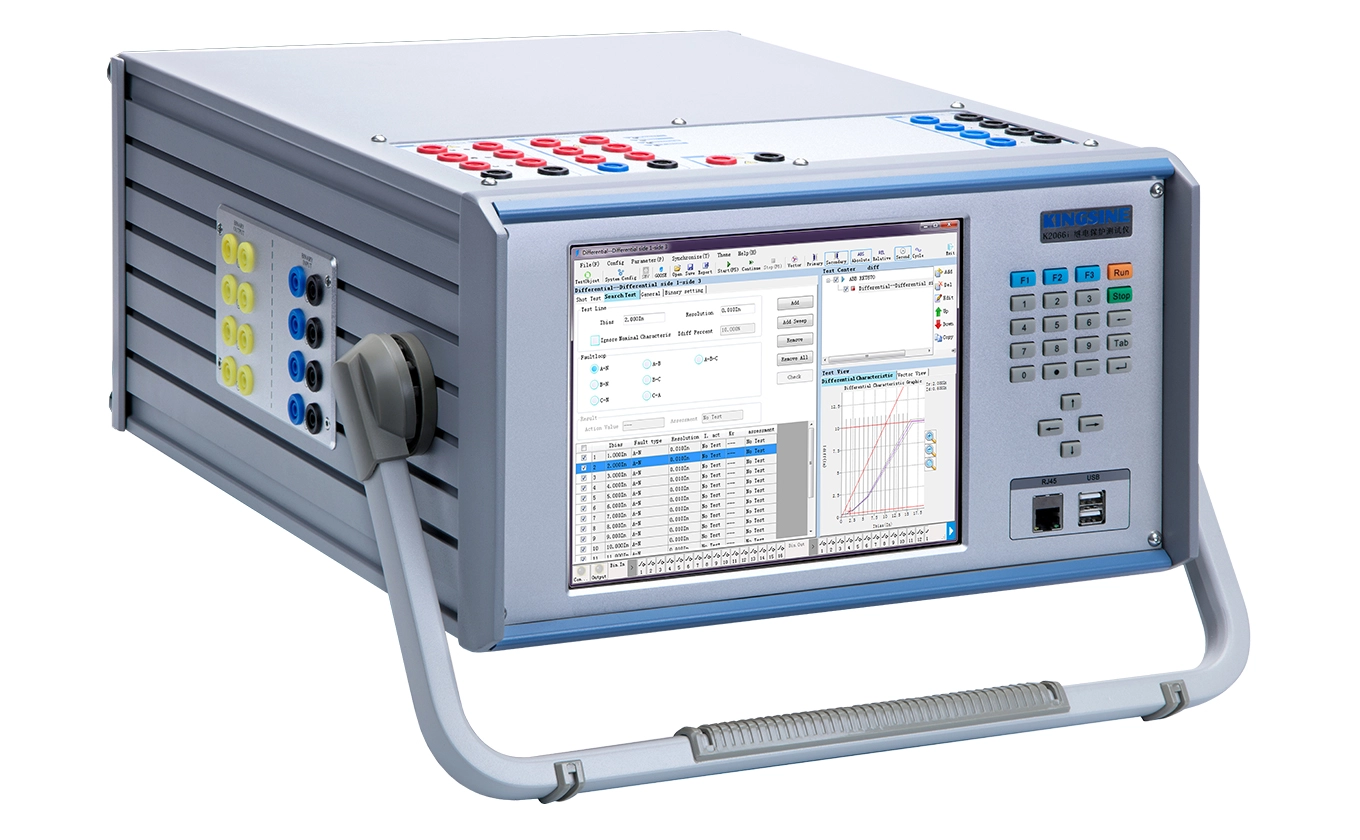

Universal Relay Test Applications.

Inbuilt 9.7″ True color TFT LCD with touch screen, numerical and shortcut keyboard, fully control with/without laptop.

10 Channels (6x35A & 4x310V) outputs, Each output channels are independent and simultaneous control of magnitude, Phase angle and frequency values, able to inject DC, AC sine wave and up to 60x harmonics.

Variable battery simulator, DC 0-350V, 140Watts max.

Transient play back up to 3KHz.

Fully function KRT software testing modules.

Graphical test modules and templates for testing of various relays.

Quick relay testing facility in Manual mode.

Shot/Search/Check, Point & Click testing.

RIO/XRIO import & export facility.

Switch on to fault test(SOTF).

Power system model for dynamic testing.

Online Vector display.

Automatic test results assume.

Automatic test report creation.

Inbuilt GPS sync end-to-end testing.

Anti-clipping detect, Wrong wiring connect alarm and self-protect, overload and overheat protection.

3-Years guarantee of free repair and life-long maintenance.

Lightweight, <20Kg. Free software upgrade. Advance Feature Energy meter calibration (Mechanical & Electronic meters). Type of Relays Can Be Tested Items ANSI® No. Distance protection relay 21 Synchronising or synchronism-check relays 25 Undervoltage relays 27 Directional Power relays 32 Undercurrent or underpower relays 37 Negative sequence overcurrent relays 46 Overcurrent/ground fault relays 50 Inverse time overcurrent/ground fault relays 51 Power factor relays 55 Overvoltage relays 59 Voltage or current balance relays 60 Directional overcurrent relays 67 Directional ground fault relays 67N DC overcurrent relays 76 Phase-angle measuring or out-of-step protection relays 78 Automatic reclosing devices 79 Frequency relays 81 Motor overload protection relays 86 Differential protection relays 87 Directional voltage relays 91 Voltage and power directional relays 92 Tripping relays 94 Voltage regulating relays Overimpedance relays, Z>
Underimpedance relays, Z
Time-delay relays
